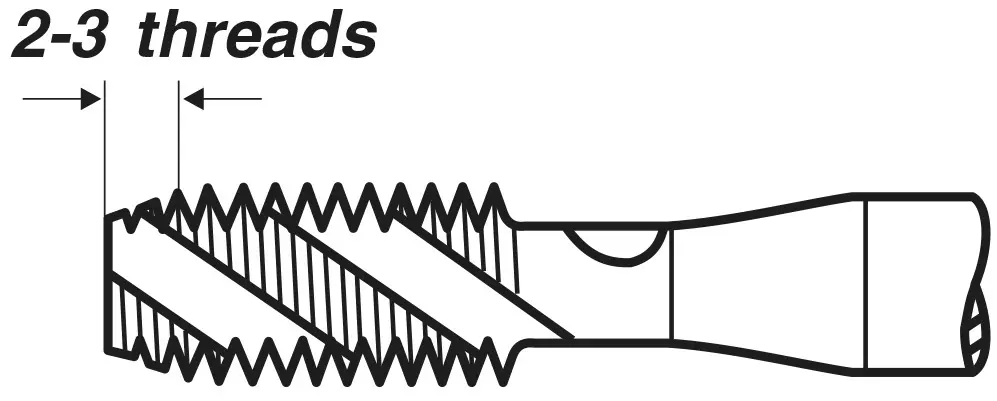

Machine Tap DIN 376 Form C 35° SP HSSE - BSW 1/4 x 20
| Manufacturer: |
|
|---|---|
| EAN: | 4022835717140 |
| Product number: | VOE71714 |
Variants
| Article name | Machine Tap DIN 376 Form C 35° SP HSSE - BSW 1/4 x 20 |
|---|---|
| Product number: | VOE71714 |
| Manufacturer | VÖLKEL |
| Standard | DIN 376 |
| Form | Form C |
| Type of flute | 35° Spiral Flute |
| Material | HSSE |
| Type of thread | Whitworth-Thread |
| Size | BSW 1/4 x 20 |
| Thread standard | BS 84 |
| Tolerance | medium |
| Overall length (L1) | 80 mm |
| Thread length (L2) | 13 mm |
| Shank diameter (D2) | 4.5 mm |
| Square | 3.4 mm |
| Application | for blind holes |
Product information "Machine Tap DIN 376 Form C 35° SP HSSE - BSW 1/4 x 20"
Application:
for general use
- non abrasive material up to 900 N/mm²
- unalloyed and low alloyed steel
- for blind holes
