Machine Tap DIN 374 Form C HSSE - NPT 1/8 x 27
| Manufacturer: |
|
|---|---|
| EAN: | 4022835734345 |
| Product number: | VOE73434 |
Variants
| Article name | Machine Tap DIN 374 Form C HSSE - NPT 1/8 x 27 |
|---|---|
| Product number: | VOE73434 |
| Manufacturer | VÖLKEL |
| Standard | DIN 374 |

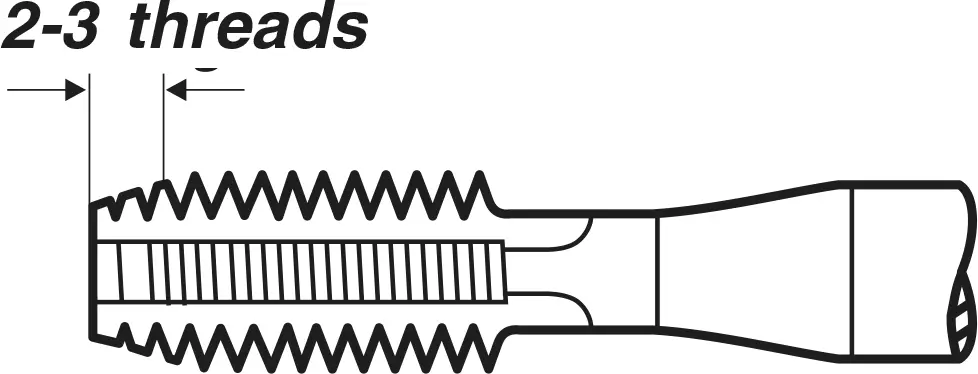

| Form | Form C |
| Type of flute | straight fluted |
| Material | HSSE |
| Type of thread | american tapered pipe thread, taper 1:16 |
| Size | NPT 1/8 x 27 |
| Tolerance | medium |
| Overall length (L1) | 90 mm |
| Thread length (L2) | 20 mm |
| Shank diameter (D2) | 7 mm |
| Square | 5.5 mm |
| Application | for through and blind holes |
Product information "Machine Tap DIN 374 Form C HSSE - NPT 1/8 x 27"
Application:
for general use
- non abrasive material up to 900 N/mm²
- unalloyed and low alloyed steel
- for through and blind holes
