Machine Tap DIN 371 Form B HSSE - BSW 1/8 x 40
| Manufacturer: |
|
|---|---|
| EAN: | 4022835705062 |
| Product number: | VOE70506 |
Variants
| Article name | Machine Tap DIN 371 Form B HSSE - BSW 1/8 x 40 |
|---|---|
| Product number: | VOE70506 |
| Manufacturer | VÖLKEL |
| Standard | DIN 371 |

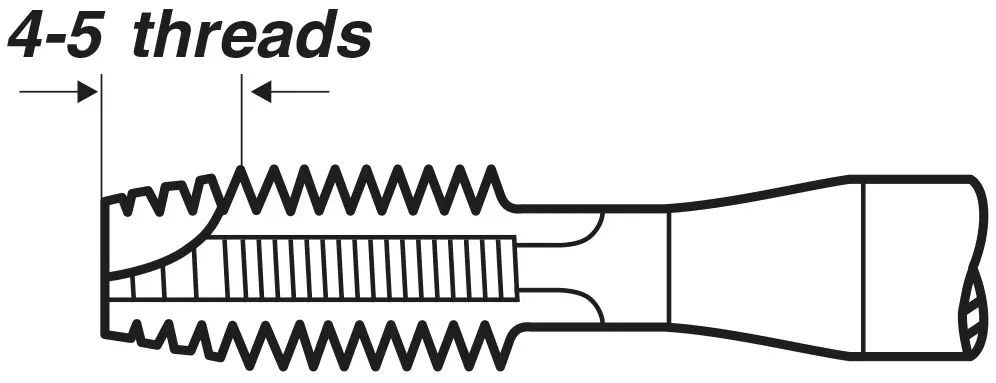

| Form | Form B |
| Type of flute | straight fluted |
| Material | HSSE |
| Type of thread | Whitworth-Thread |
| Size | BSW 1/8 x 40 |
| Thread standard | BS 84 |
| Tolerance | medium |
| Overall length (L1) | 56 mm |
| Thread length (L2) | 11 mm |
| Shank diameter (D2) | 3.5 mm |
| Square | 2.7 mm |
| Application | for through holes |
Product information "Machine Tap DIN 371 Form B HSSE - BSW 1/8 x 40"
Application:
for general use
- non abrasive material up to 900 N/mm²
- unalloyed and low alloyed steel
- for through holes
